Besides the quilted amber model, this was the most used guitar live. It also appears in a guitar ad with Edward inside him home studio.

The guitar specs are:

• Measures: 12-5/8" wide, 1-3/4" thick, 36-1/4" long;
• Weight: 7 pounds, 4 ounces (varies slightly);
• Body: basswood with bookmatched figured maple top;
• Body finish: high gloss polyester;
• Body sides and back: black colour with cream binding;
• Bridge: Floyd Rose locking tremolo (lowers pitch only);
• Neck scale: 25-1/2";
• Neck radius: 10";
• Headstock: 5-7/8" long;
• Frets: 22, high profile, medium width;
• Neck width (at nut): 1-5/8";
• Neck width (at last fret): 2-3/16";
• Neck: selected maple neck and fingerboard
• Neck finish: gunstock oil and hand-rubbed special wax blend, matching color headstock;
• Tuners: Schaller M6LA with pearl buttons;
• Truss rod: adjustable;
• Neck attachment: five bolts;
• Electronics shielding: graphite acrylic resin coated body cavity and aluminum lined control cover;
• Switch: 3-way toggle pickup selector;
• Controls: 500 K.Ohm volume pot (with "Tone" button);
• Pickups: two DiMarzio custom wound designed by EVH;

Some pictures to follow.

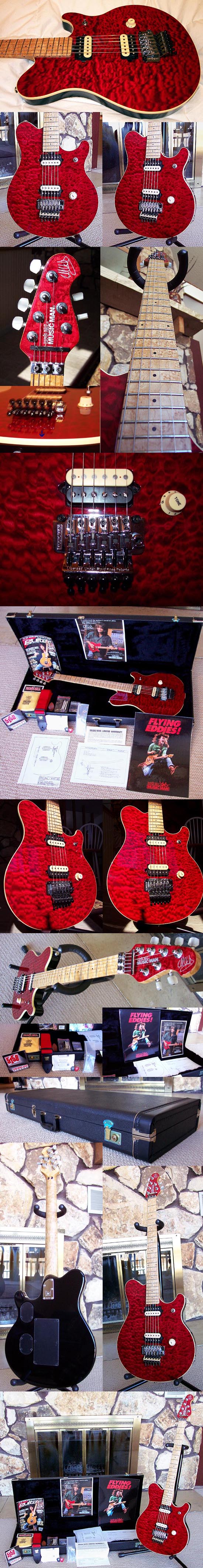

Here's a "all-in-one" picture:
